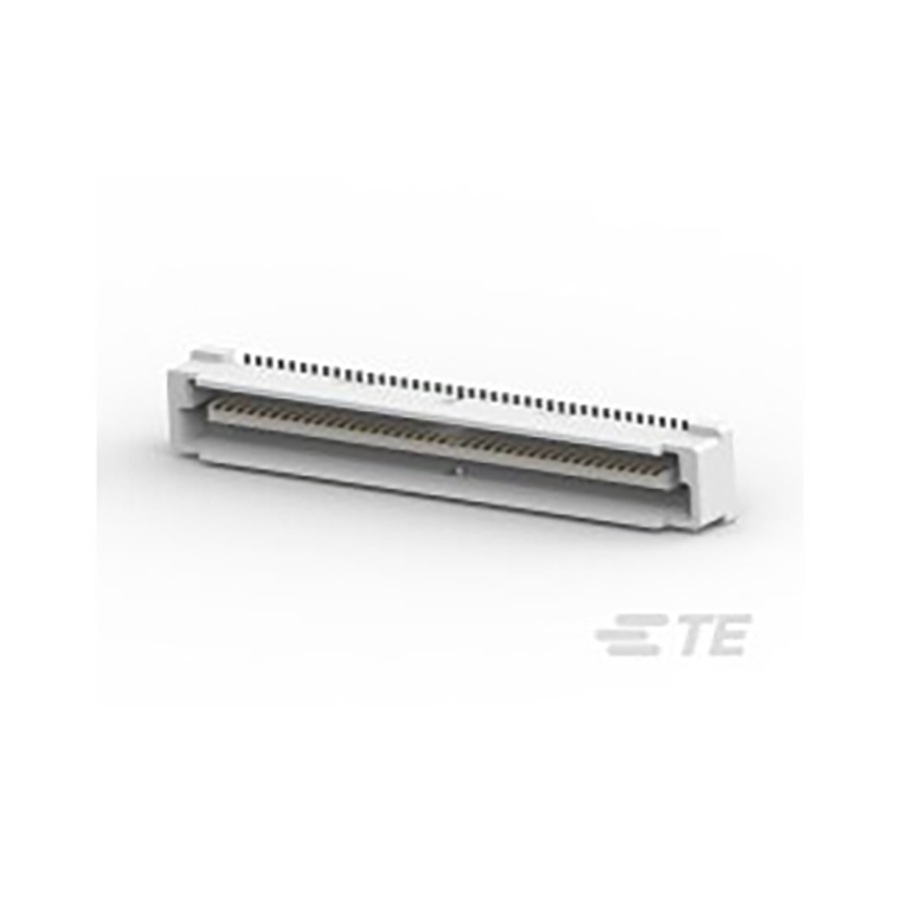

5177984-3 TE Connectivity | PCBX Electronics

5177984-3

Manufacturer:

TE Connectivity

Mfr.Part #:

5177984-3

Datasheet:

Description:

Board to Board Connectors SMD/SMT Plug, Tab Number of Positions:80 Number of Rows:2 Row Spacing:2.4 mm Pitch:800 µm

Parameter	Value
Length	37.8 mm
Termination	SMD/SMT
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Voltage Rating (AC)	100 V
Number of Pins	80
Height	5 mm
Packaging	Bulk
Voltage Rating	100 V
Depth	6 mm
Radiation Hardening	No
RoHS	Compliant
Lead Pitch	800 µm
Insulation Resistance	2 MΩ
REACH SVHC	No SVHC
Contact Plating	Gold
Contact Material(Contact Finish)	Brass
Pitch	800 µm
Current Rating	500 mA
Flammability Rating	UL94 V-0
Orientation	Vertical
Operating Supply Voltage	100 V
Lifecycle Status	Production (Last Updated: 3 weeks ago)
Gender	Male
Number of Contacts	80
ELV	Compliant
Connector Type	Plug, Tab
Number of Positions	80
Number of Rows	2
Row Spacing	2.4 mm
Insulation Material	Thermoplastic
Housing Material	Polymer
Circuit Application	Signal
Contact Resistance	30 mΩ
Max Voltage Rating (AC)	100 V
Contact Current Rating	500 mA
Housing Color	Natural
Plating	Gold
Contact Gender	Male
Stackable	Yes
Stack Height	8.9916 mm
Contact Shape	Square
Preloaded	Yes
Mated Stacking Heights	17 mm
Manufacturer Lifecycle Status	ACTIVE (Last Updated: 3 weeks ago)
Sealable	No
Contact Finish Thickness - Mating	200 nm
Mating Alignment	With
Mounting Angle	Vertical

Distributors

pcbx

Unit Price$3.57860

Ext.Price$3.57860
